ModbusMaster协议
下载
示例工程演示
下载链接：https://help.simtutai.cn/docs/zi-yuan-xia-zai-lian-jie
Modbus协议的使用非常简单，主要关联设备地址就可以了
主要步骤如下：

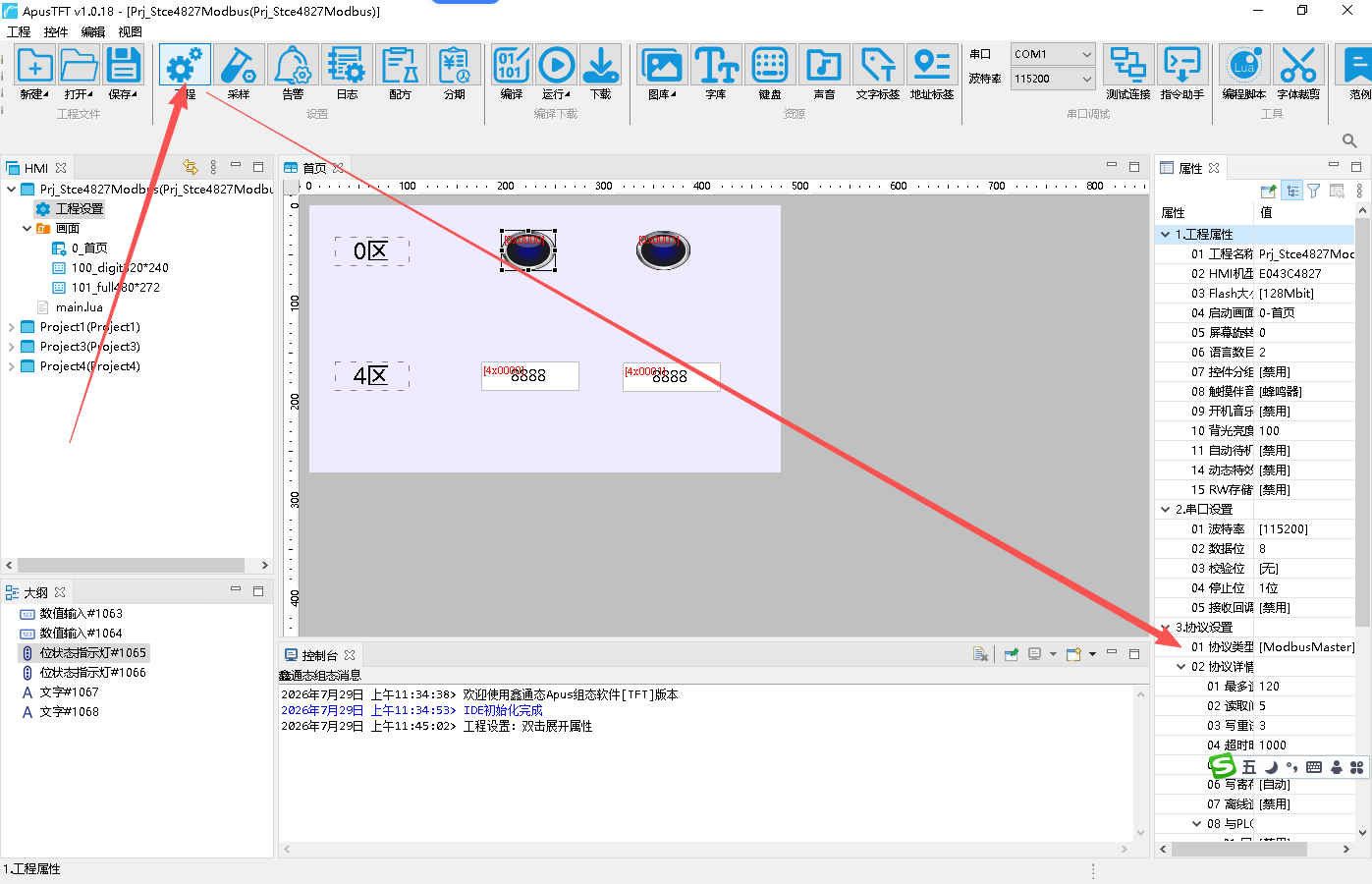

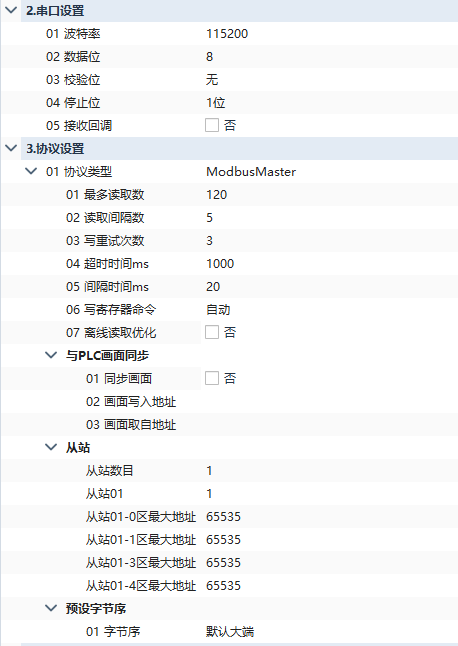

1.工程设置：修改协议类型属性为ModbusMaster，并按需求修改协议参数
2.画面设计：拖放控件，关联地址

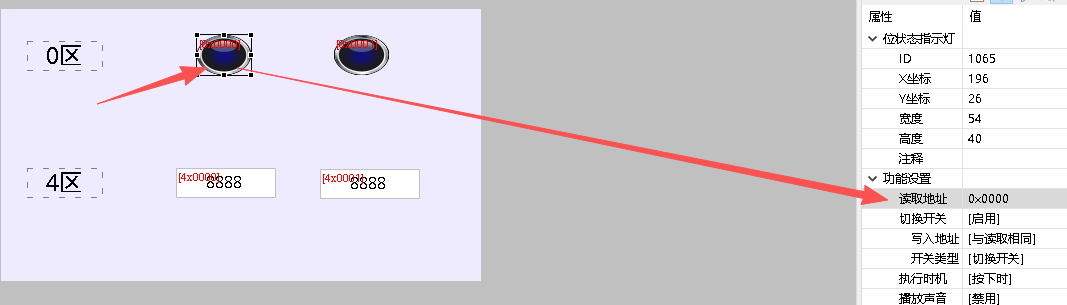

2.1关联地址
2.2选择地址

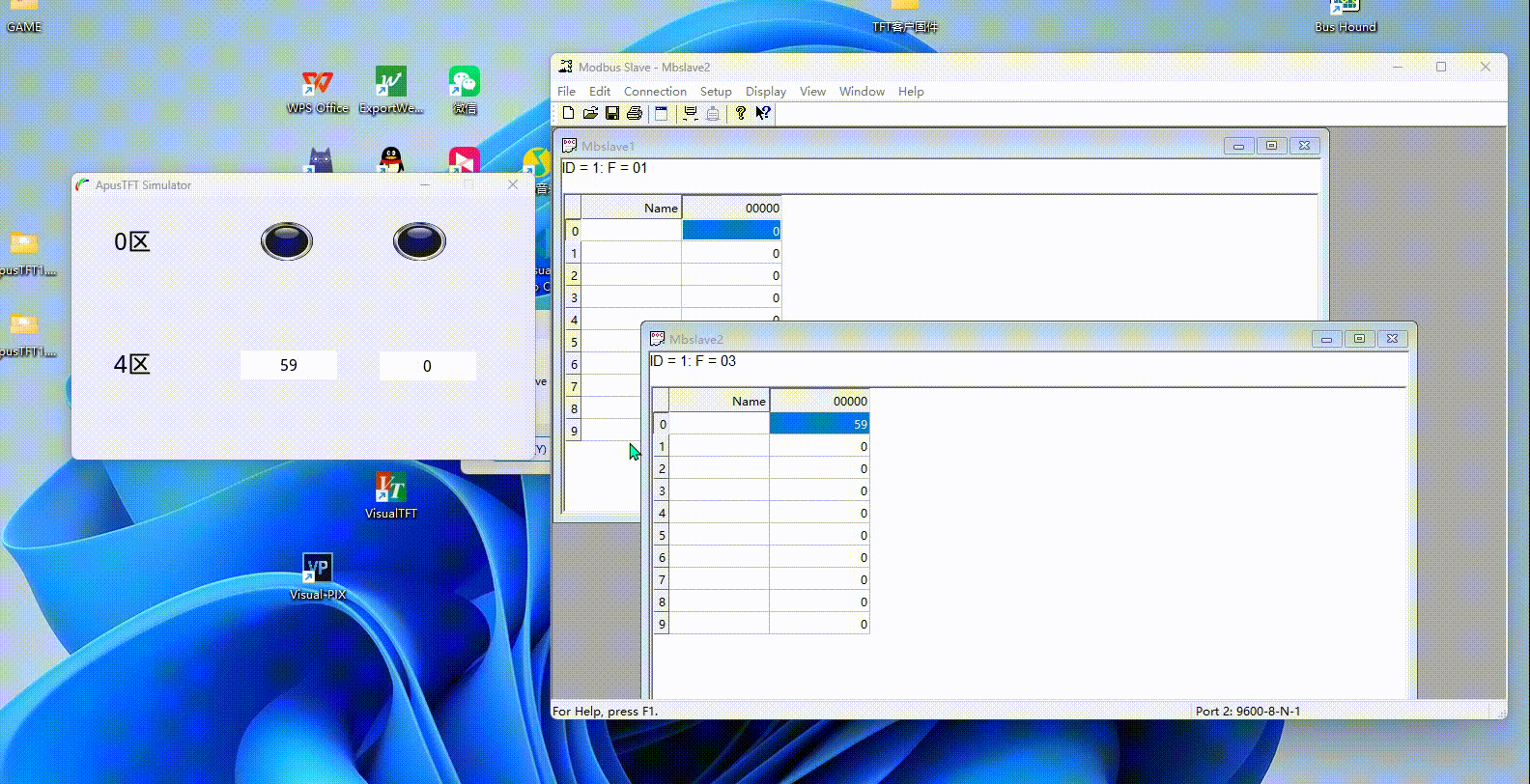

3.模拟运行：需用到串口对模拟软件、ModbusSlave软件
如上视频
4.下载到触摸屏上运行
