1.6 TFT串口下载工程
下载
1. 串口下载
1.下载前必须正确编译工程，在软件菜单栏中点击【下载】按钮；

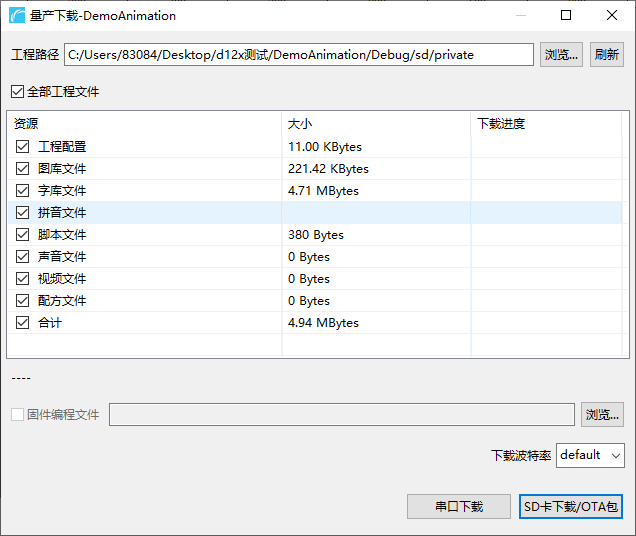

2.弹出【量产下载】窗口，点击串口下载系统会搜索可用串口，尝试连接串口屏，连接成功后，等待下载完成，如图所示；
注意
下载前必须先正确编译工程
