1.10TFT切换页面
下载
方法1：功能键切换

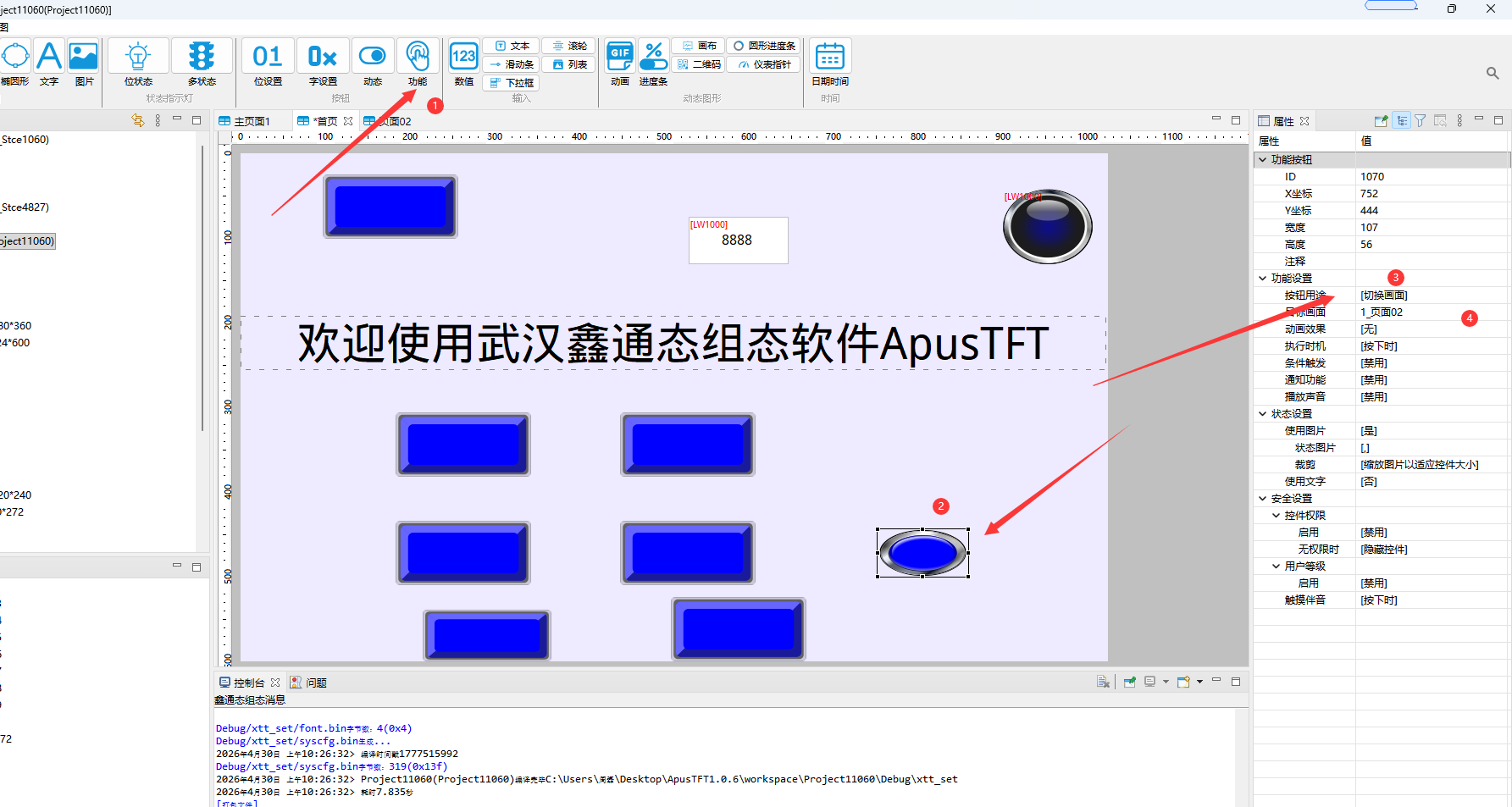

如下图所示
操作1：新建功能键
操作2：选择合适的位置放下功能键
操作3：选择功能键功能为切换画面
操作4：选择需要切换的页面
方法2：系统寄存器0x100切换（串口或脚本更改）
示例1：串口修改

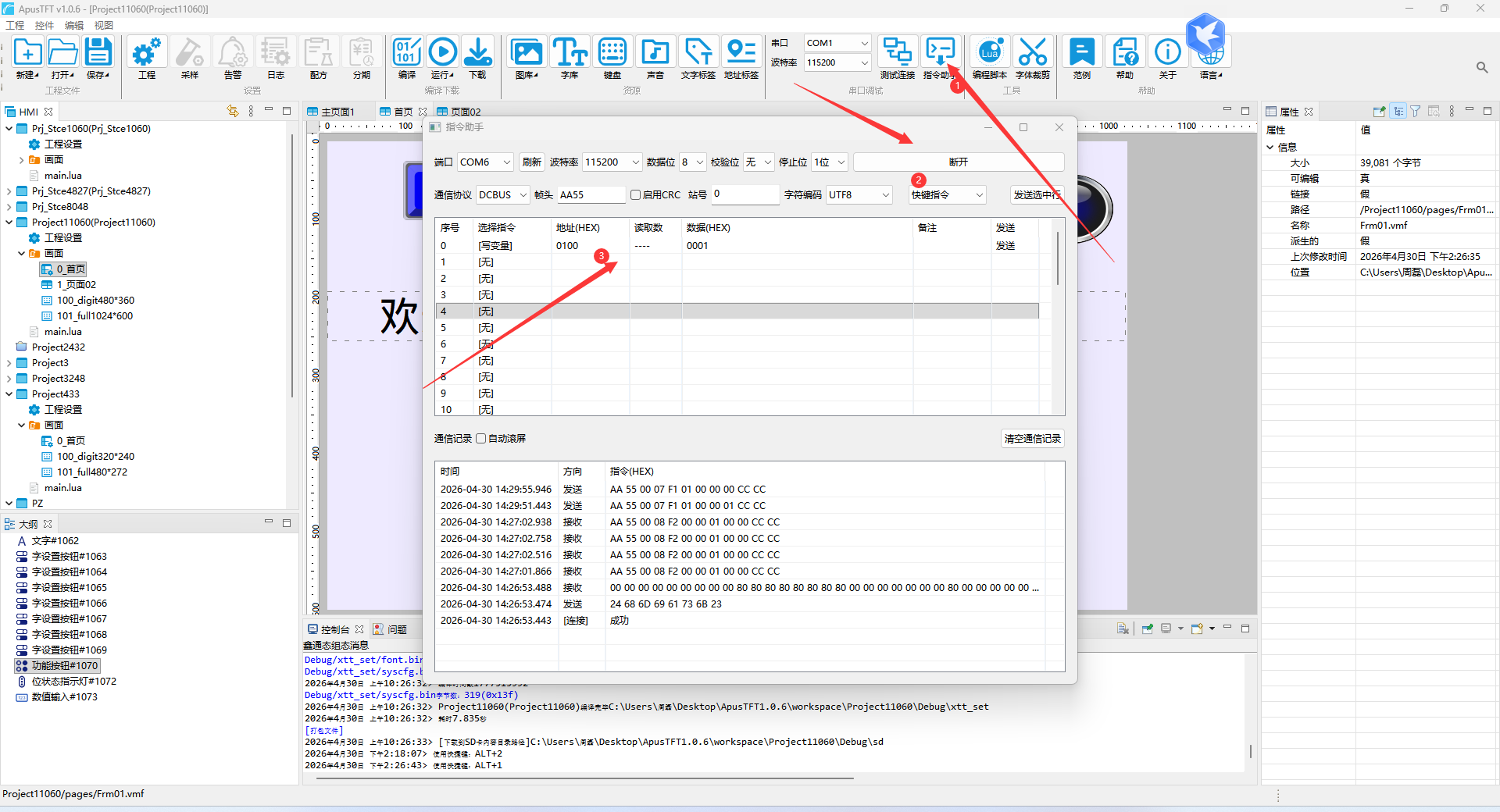

操作1：打开指令助手
操作2：选择往0x100地址发送需要切换的页面号
操作3：点击发送
示例2:脚本修改

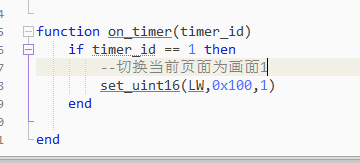

打开脚本编辑器，往0x100地址寄存器写入需要切换的页面号如图所示
lua
set_uint16(LW,0x100,1)上一个
