更换开机LOGO
下载
更换前提
- LOGO 必须为
jpg格式，图片不能分辨率过大。- LOGO 图片的
像素宽度必须是 16 的倍数。- 修改 LOGO 的名称为
SIMTUTAI0.jpg。- 最好手动输入图片名称SIMTUTAI0.jpg和ini文件配置，避免字符串编码问题导致更新失败。
通过U盘更换

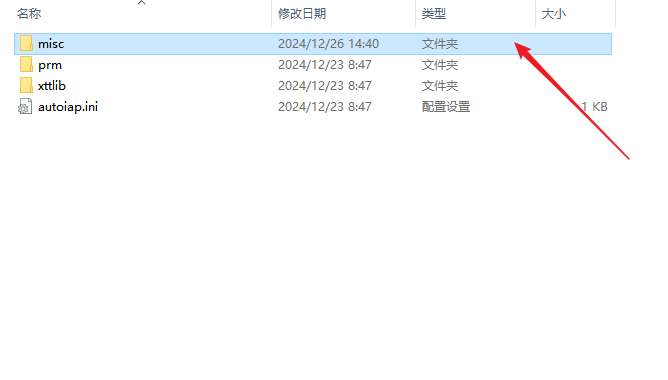

- 将文件正常导出后 进入 u 盘更新文件夹，新建一个文件夹重命名为
misc。

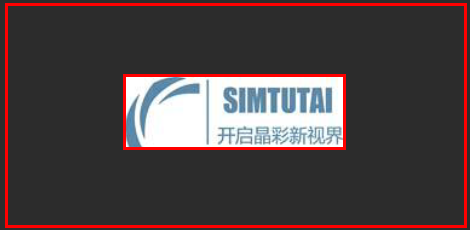

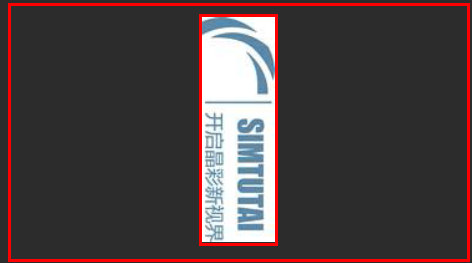

- 可以用画图等工具设计图片，将 logo 图片另存为 SIMTUTAI0.jpg ，图片的分辨率要与设备的一致,再将图片放入
misc文件夹中。

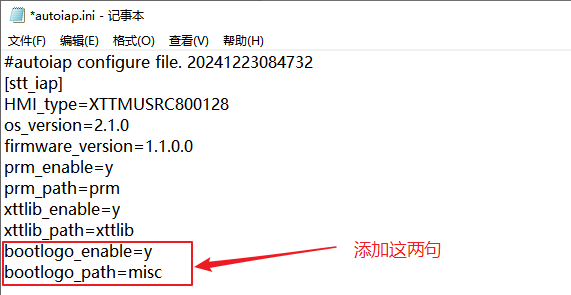

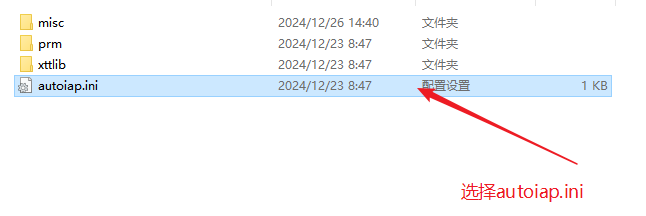

- 修改根目录下的 autoiap.ini
ini
bootlogo_enable=y
bootlogo_path=misc将该文件夹放入U盘，插入屏上即可。
通过网线更换

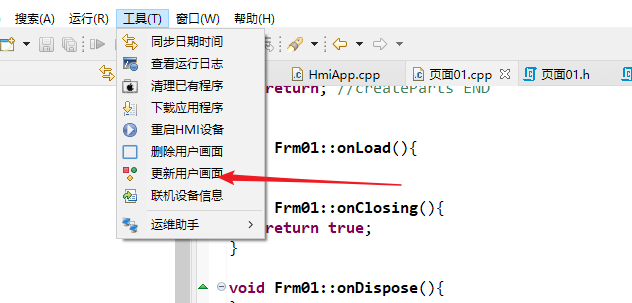

用网线连接屏和电脑。连接成功后，点击菜单栏工具，选择更新用户画面（如果直接使用更新用户画面不成功，就先点击删除用户画面，删除完成后再选择更新用户画面）。
注意要点
- 用网线连接屏和电脑后，屏和电脑的网段
必须一致（如 默认屏的ip为192.168.1.100，连接的网段需要修改成192.168.1.x） - 首次连接可能工具点击后仍是灰色不可点状态，先反复选中工程，如果还是无法正常点击，参考问题汇总
