欧姆龙连接说明
下载
1:HostLink模式：
1.1PLC端设置

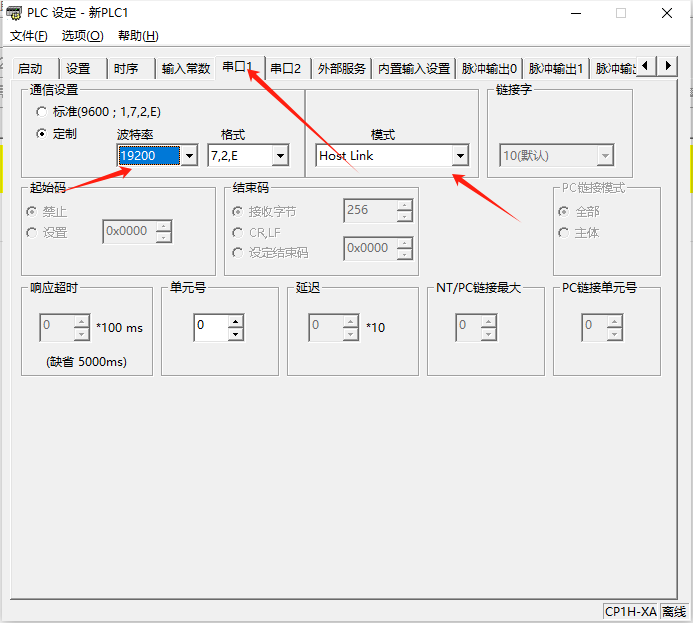

（1）PLC自带的HostLink口或RS232扩展板一般可以通过编程软件CX-Programmer设置串口的通讯参数及通讯方式，此时一定要将通信模式设置为“Host Link”。建议设置为“19200、7、2、E”，RS232方式通讯时，单元号（即PLC地址）建议设为默认值0。如下图：
（2）其他通讯扩展板可通过软件或硬件跳线进行设置，具体请参考使用手册进行正确设置。
1.2HMI设置

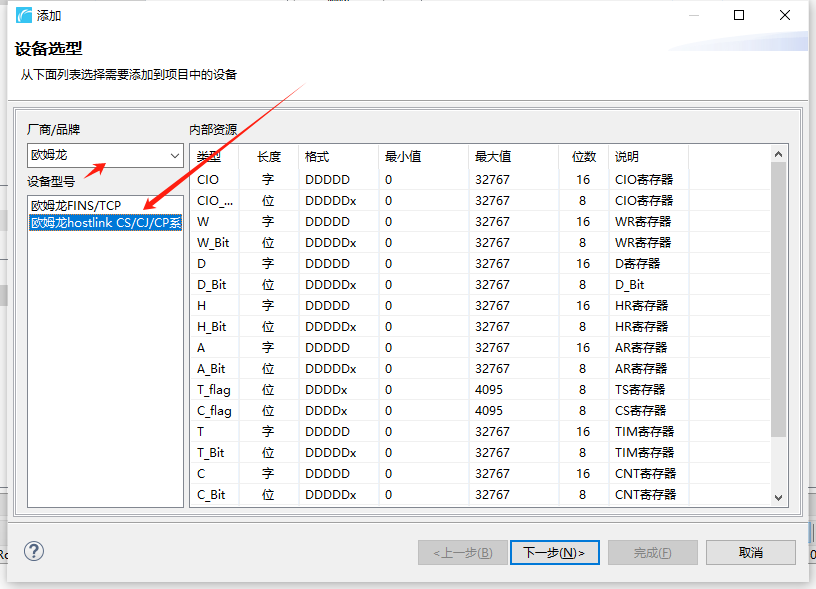

(1)选择HostLink协议

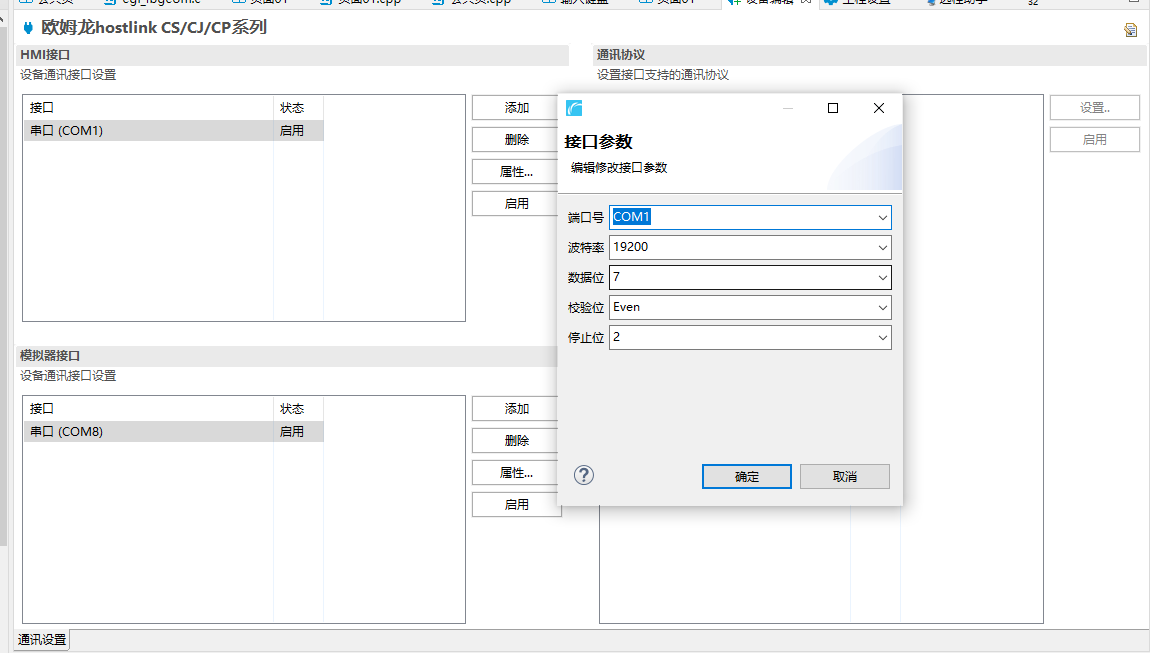

(2)添加一致的串口通讯参数
1.3模拟运行

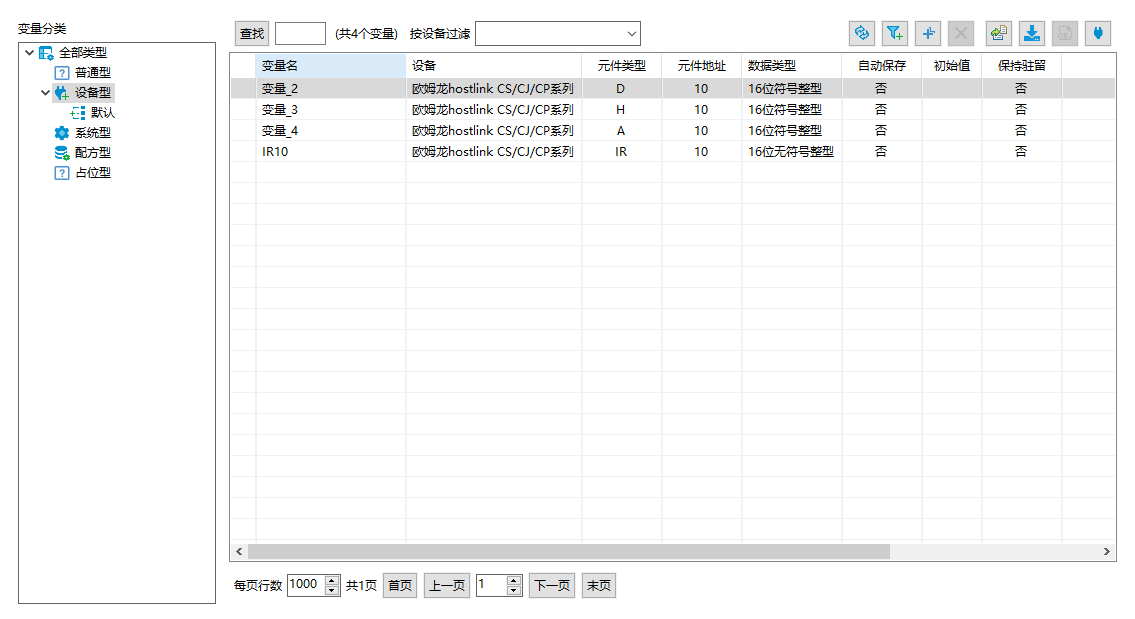

(1)添加寄存器

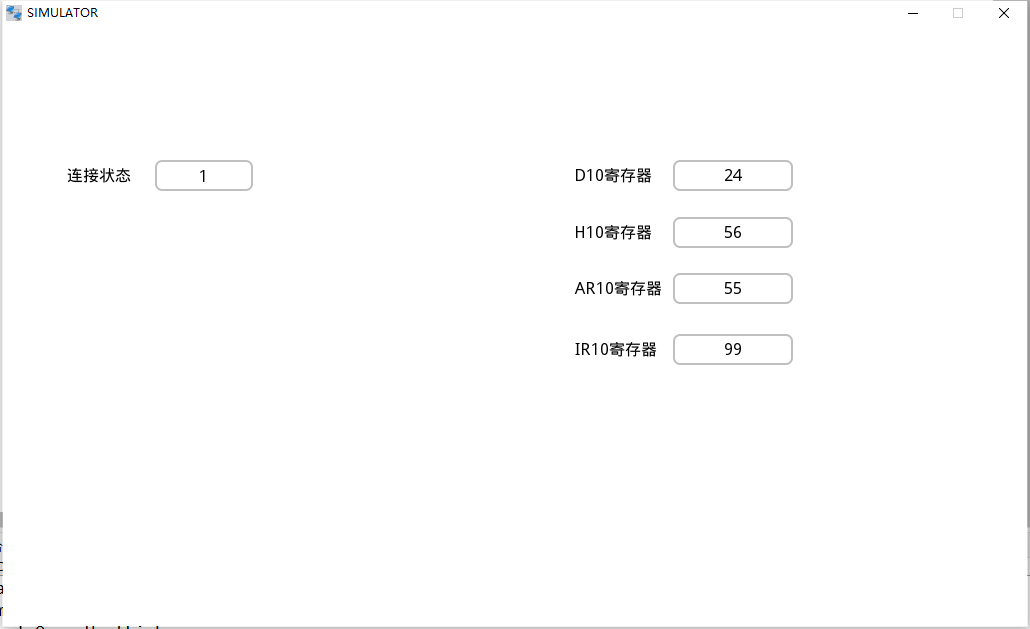

(2)模拟运行
