对于固定不可更改的型号如何修改成可编辑的型号
下载
主要针对于 做工程时型号选择的是 800*1280 的 自定义分辨率屏幕

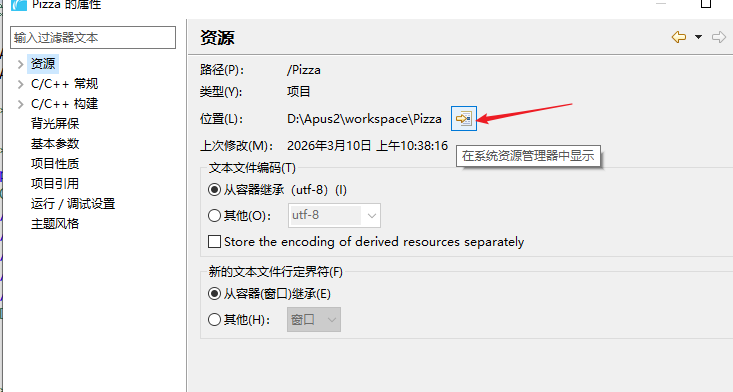

找到工程所在的文件夹 可以右键工程 属性 查看到工程原路径
打开文件夹 点击 .devicesetting 修改 devicesconf.json 文件
1.修改 modelType 为标准型号 如 XTTMUSRC136768 => XTTM101C8012 2. 如果是相同型号的话 不用修改 width 和 height 在此也不太建议转换不同型号的屏幕 3. 旋转可以保持原来的旋转角度
下面是图片说明
