！连接必读
下载
驱动配置问题（模拟器（WIN） HMI(LINUX)）
不同于其他HMI，鑫通态HMI可同时配置模拟器端口和HMI端口，避免用户在两边调试的时候经常更换串口。
HMI下串口号固定为COM1 COM2 COM3 模拟器下串口号为电脑适配串口，所以需要适配两边的串口。
新版本：
老版本：
模拟器配置串口号

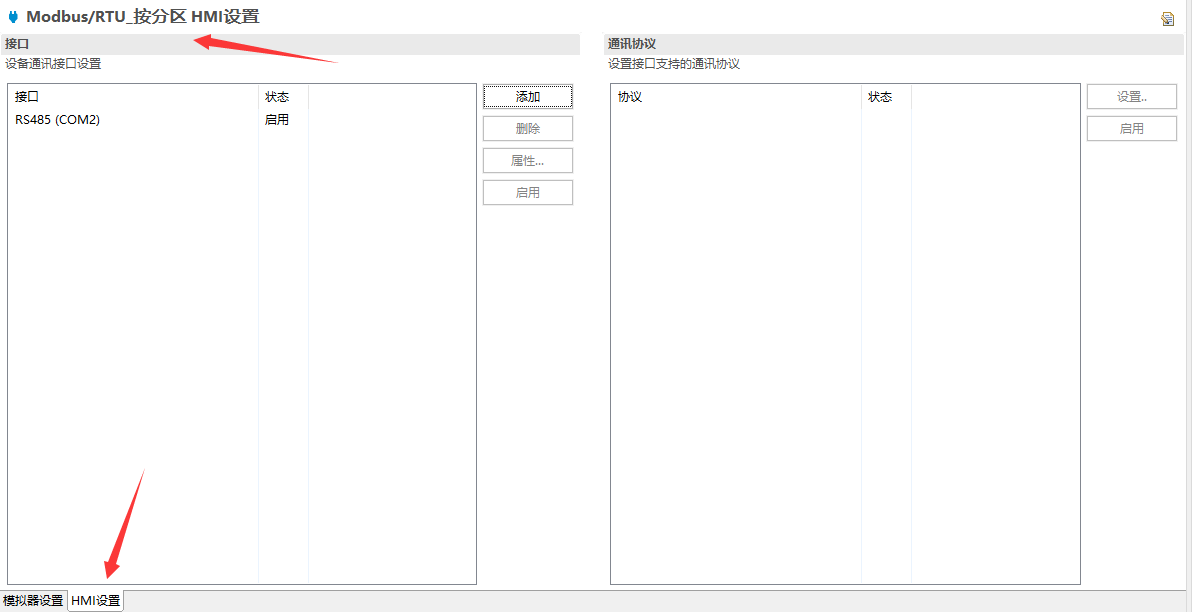

HMI配置串口号
驱动常见问题

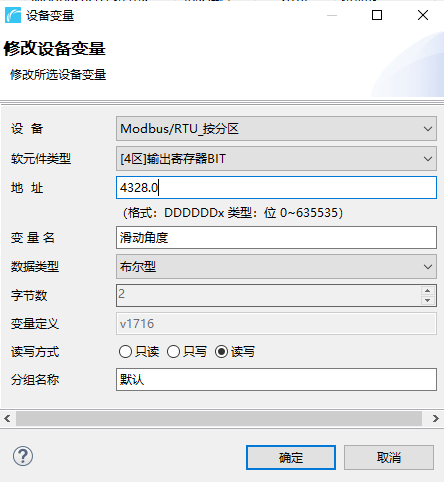

WORD FLOAT DWORD BIT 问题
一个Word对应HMI内部一个16位有符号整数
Dword对应一个有符号整数
Bit类型每个驱动都对应有响应的数据类型 注意位置即可 比如ModBus 为0-15
