台达系列驱动
下载
介绍
鑫通态HMI支持台达DVP系列（ModBusAscii ModBusRTU）As300系列
概要
本驱动构件用于鑫通态软件与台达PLC通信, 读取台达DVP系列变频器设备的各种寄存器以及线圈的数据。
接线说明
串口：DEP系列默认协议为ModBusAscii COM1为232 COM2 485(默认通讯参数通讯站号：1。格式：ASCII。传输速率：9600。数据长度：7。偶。停止位：1。)
网口：以太网或者WIFI (默认参数：ip：192.168.1.5 端口：502)
COM1(RS-232) 脚位定义：
连接说明

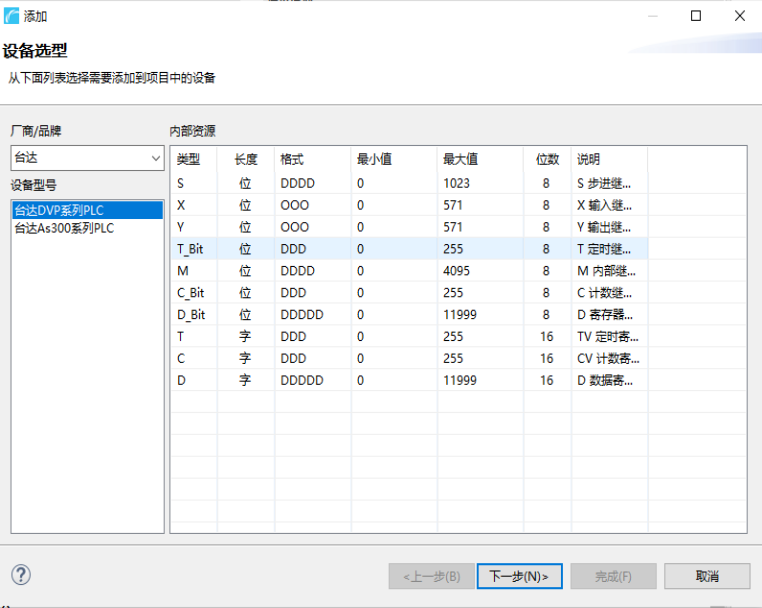

1：在添加设备中选择对应PLC的型号：以台达DVP为例

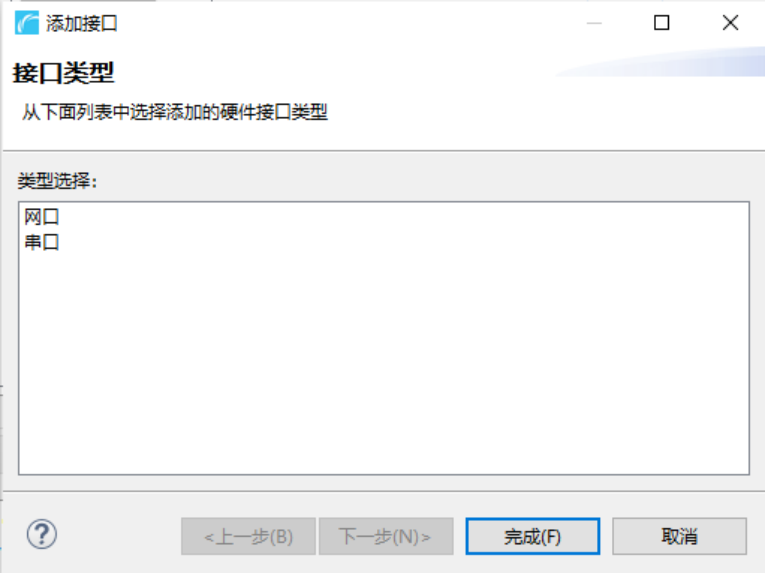

2：选择自己的接口方式：网口或串口
3：设置网口或串口参数。

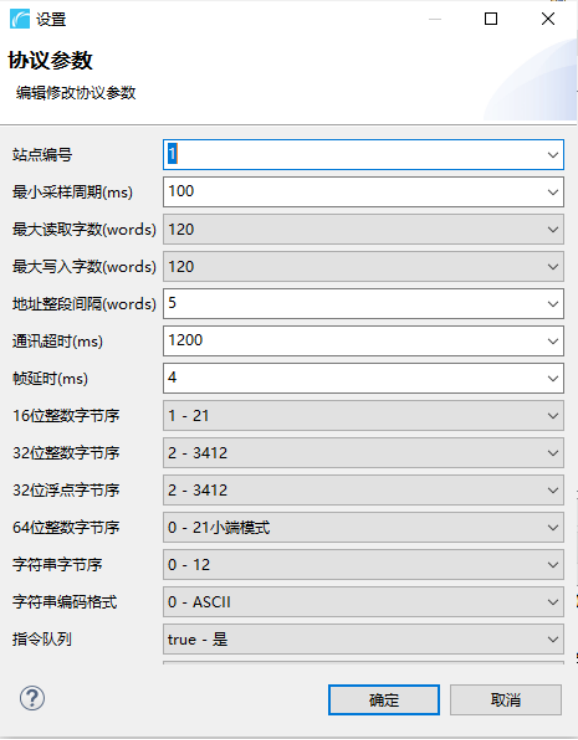

4：设置协议参数。
连接视频
附录：
DVP软元件属性
寄存器 简称 寄存器类型（位/字） 操作方式 PLC地址表示
S步进继电器 S 位 读写 10进制
X输入继电器 X 位 只读 8进制
Y输出继电器 Y 位 读写 8进制
T定时继电器 T 位 读写 10进制
M内部继电器 M 位 读写 10进制
C计数继电器 C 位 读写 10进制
TV计数寄存器 TV 字 读写 10进制
CV计数寄存器 CV 字 读写 10进制
D数据寄存器 D 字 读写 10进制
